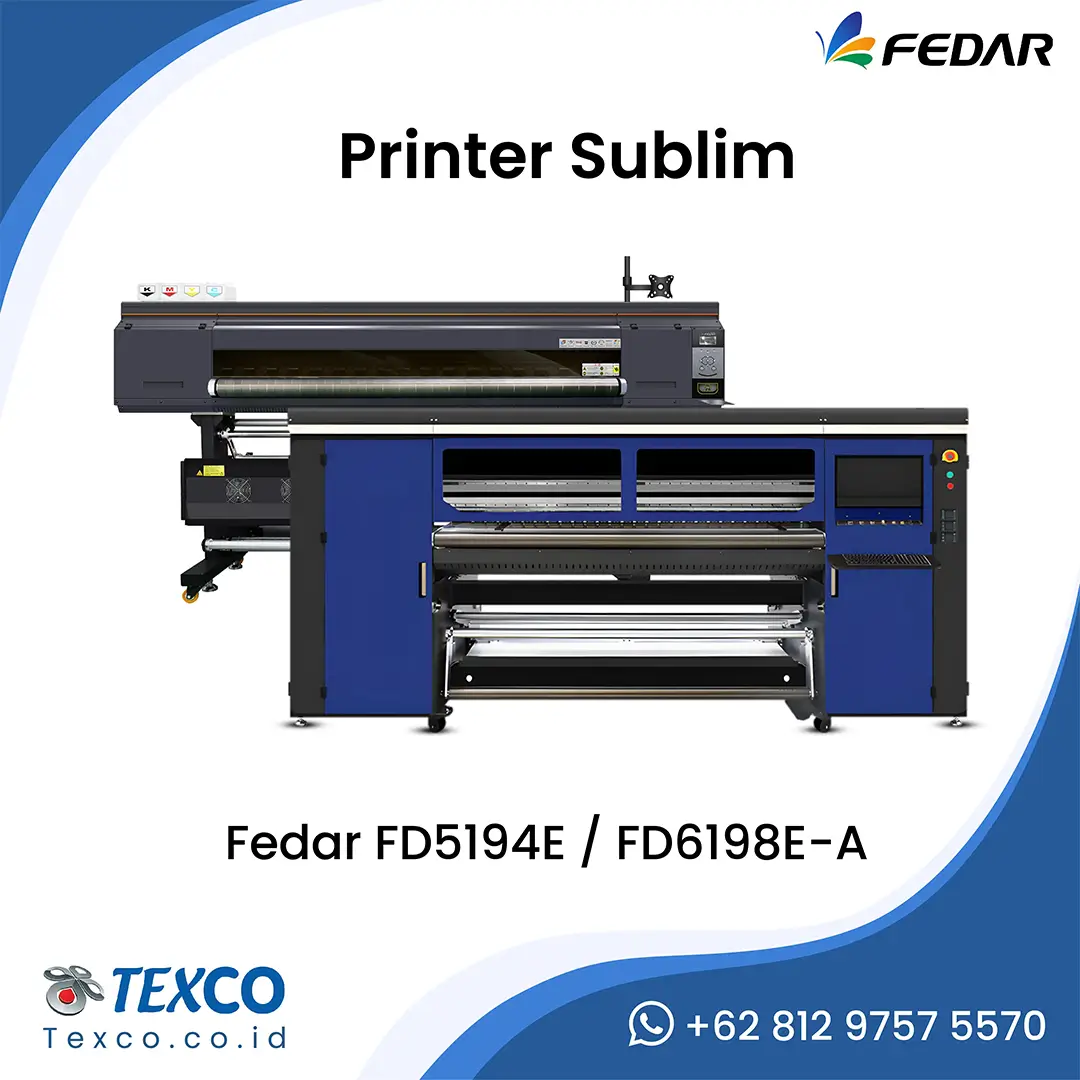

Fedar FD5194E / FD6198E-A Sublimation Printer

Description

Orders are flooding in, but production capacity is limited? And in the end, your customers are disappointed and profits are eroded?

The Fedar FD5194E/FD6198E-A sublimation printer offers a solution featuring a choice of 4 or 8 high-quality Epson i3200-A1 printheads to boost profit growth in your sublimation business.

Japanese-quality THK guide rails provide maximum stability during high-speed printing of up to 370 m²/h.

Enjoy premium print quality with a maximum resolution of 3,200 DPI that delights your customers and keeps them coming back for more orders.

Equipped with a large-capacity 4–8L ink tank and a positive-pressure ink supply system, this printer ensures uninterrupted, non-stop production.

Experience the freedom of running your business without worrying about running out of ink mid-production, while the carriage’s anti-collision system protects your printhead.

A powerful extra dryer system ensures prints dry quickly, while pinch rollers made of imported fluororubber prevent media wrinkling.

Forget about imperfect print results and focus on growing your profitable business.

The auto-feeding and take-up system, featuring an inflatable roller, handles media rolls ranging from 1,000 to 2,000 meters without supervision.

Imagine how many orders you could complete without needing to hire additional staff to oversee the printing process.

A platform with a powerful vacuum system keeps the media stable for consistently precise results.

Every printout from this printer will bring a satisfied smile to your customers’ faces and boost your business’s reputation.

Backed by Japanese technology and high-quality components, this printer ensures long-term production stability.

A one-time investment for recurring returns that will make your business increasingly profitable.

It’s time to boost your sublimation business’s production capacity with this printer featuring top-tier technology.

Contact us now for a free consultation and calculate the profit you can achieve with the Fedar FD5194E/FD6198E-A sublimation printer.

Key Features & Benefits

• The 1.9 m print width allows for printing on various media sizes to meet the needs of the fashion and textile industries.
• A choice of 4 or 8 Epson i3200-A1 printheads with a maximum resolution of 3,200 DPI produces detailed and sharp prints.
• A 4–8L positive pressure ink tank system enables nonstop production without the need for frequent refills.
• The auto-feeding and take-up system with inflatable rollers handles media up to 1,000–2,000 m unattended.
• Japanese THK guide rails and an anti-collision system ensure stability during high-speed printing.
• The smart pinch roller, featuring fluoro rubber, prevents media wrinkling during the printing process.
• It features an extra dryer system comprising a fan and an infrared heater with adjustable speed and temperature settings to suit specific needs, thereby minimizing operational costs.
• The vacuum platform system keeps the media stable for consistently precise print results.

Product Applications

The Fedar sublimation printer is capable of printing on various polyester containing materials, such as:

• Jerseys & Sportswear
• Hijabs
• Gamis
• Pashminas
• Shirts / T-Shirts
• Aprons
• Dresses
• Leggings
• Underwear
• Swimwear

Fabrics Compatible with Sublimation Printers:

Fedar Sublimation Printer is capable of printing on various polyester-based materials, such as:

• Jersey Fabric
• BSY
• Satin
• Canvas
• Chiffon
• Santung
• Maxmara
• Voal
• Scuba
• Parachute
• Taslan
• Twill PE
• Blacu PE, and more.

Specifications of Fedar FD5194E / FD6198E Sublimation Printer

Model		FD5194E	FD6198E-A
Printhead		Epson i3200-A1
Number of Printheads		4	8
Ink Color		CMYK
Ink Type		Sublimation
Printhead Properties		Auto Cleaning and Automatic Flashing
Print Area Width		1.9 m
Print Mode*	Draft	360 x 1200 DPI | 2 pass | 180 m²/hour	360 x 1200 DPI | 1 pass | 370 m²/hour
	Production	360 x 1800 DPI | 3 pass | 110 m²/hour	360 x 2400 DPI | 2 pass | 185 m²/hour
Maximal Media Feeding		1,000 m	2,000 m
Print media		Transfer Paper
Print media driving force		Pinch Roller
Drying System		Automatic Drying Fan
Printhead Moisturizer		Full Seal Auto Capping dan Cleaning
RIP Software		FlexiPrint
File Type		TIFF, JPG, EPS, PDF, dsb
Data transmission		Gigabit LAN
Room Conditions		Temperature: 18°C ​​– 30°C and Humidity: 35% – 65%
Electricity Demand	Voltage	210 – 230 V, 50/60 Hz
	Printer Power	1,000 W	1,800 W
	Drying Power	Max. 8,000 W	Max. 10,000 W
Printer Size		3.18 m x 1.1 m x 1.7 m	3.85 m x 1.55 m x 1.85 m
Packaging Dimensions		3.37 m x 0.86 m x 1.11 m	3.92 m x 1.15 m x 2.00 m

*Other printhead variants available.
**Print speeds apply to a 1.9-meter print width without feathering.

Heat Press Machine Roll ZH1932

Model	ZH1932
Transfer Area Width	1.85 m – 1.9 m
Drum Diameter	32 cm
Power Consumption	13 KW
Voltage	380 V
Production Speed	50-60 m/hr
Machine Dimensions (+ Working Table and Oil Tank)	2.8 m x 3.26 m x 1.45 m
Machine Weight	1,000 kg
Notes	Other variants with different sizes are available.

*Other printhead variants available.
