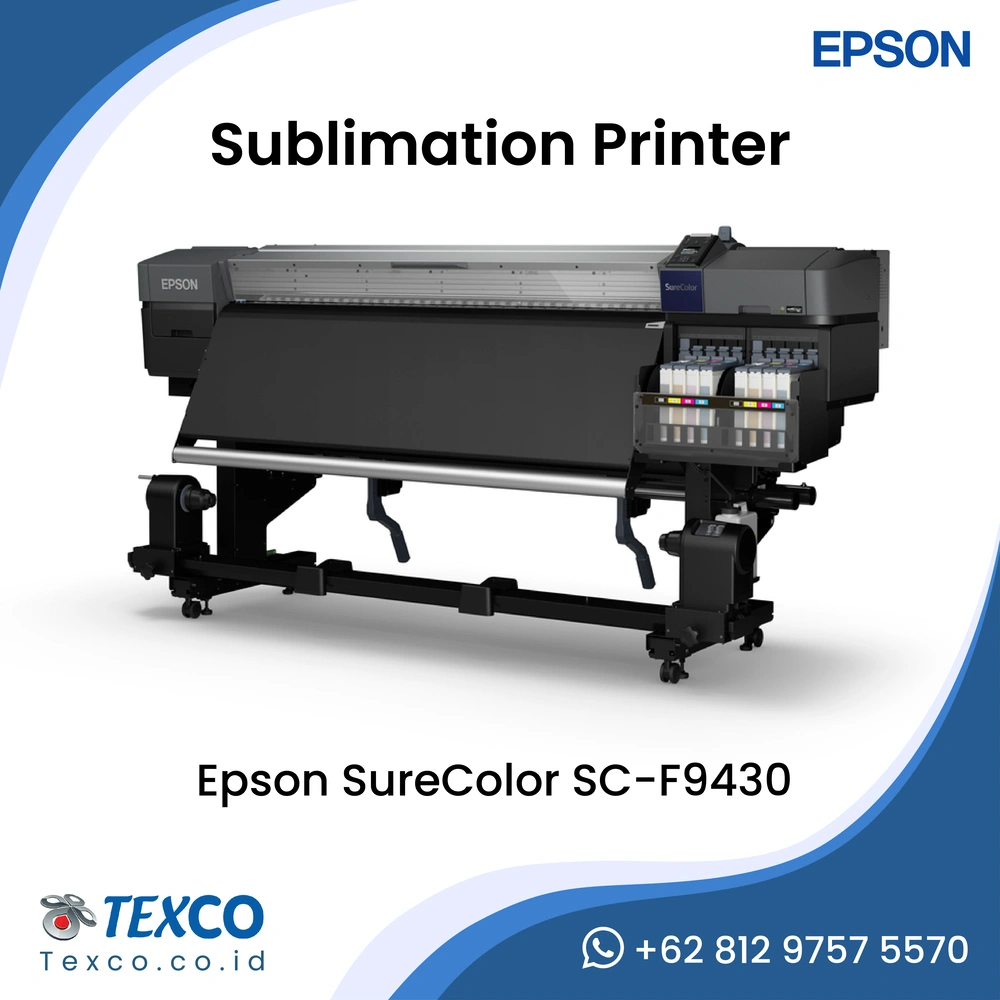

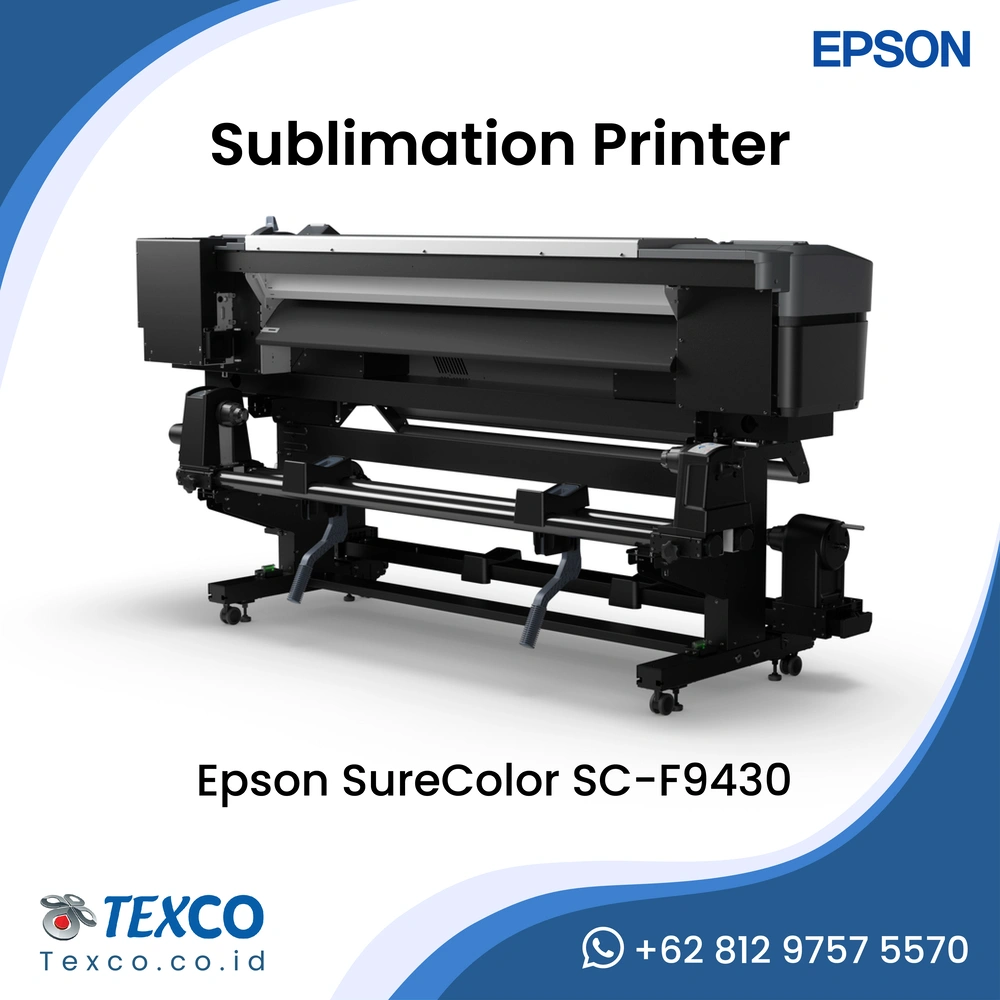

Epson SureColor SC-F9430 Sublimation Printer

Description

Sublimation printing is a popular printing method that transfers designs from transfer paper to fabric using heat and pressure (between 350–400 degrees).

This process converts solid ink particles into gas, allowing the ink to “transfer” from paper to fabric. It’s a simple and cost-effective way to create custom designs on products, used both by companies and individuals at home.

Sublimation printing requires specific equipment, most notably a fabric printer designed for the sublimation process.

To make it easier for you to choose the best dye sublimation printer for your needs, we present the Epson SureColor SC-F9430H Fluorescent Sublimation Printer!

The Epson SC-F9430H is a dye sublimation printer from Epson, perfect for those with fabric printing needs requiring vibrant and striking colors. This printer also allows you to print with no minimum quantity, just like other sublimation printers.

What makes this printer stand out?

The Epson SureColor SC-F9430H Fluorescent comes equipped with fluorescent yellow and pink inks! This makes it ideal for various fabric printing needs, from fashion items to household products.

Want to print beautiful dresses? You can! Need neon-colored jerseys? Absolutely!

Specifications of Epson SureColor SC-F9430 Sublimation Printer

In addition to its versatility, the Epson SureColor SC-F9430H Fluorescent boasts high specifications:

• 6 genuine Epson sublimation ink colors: CMYK, fluorescent yellow, and pink.
• Maximum media width: 1.615 m.
• Print speed: Up to 62 m²/hour.
• Warranty: 1 year.

MODEL NUMBER	SC-F9430 (C11CJ00402)
Printer Width	64”
Printhead	Dual PrecisionCore™ TFP® Printhead
Nozzle Configuration	360 nozzles x 4 channels x 2 heads
Maximum Resolution	720×1,440 dpi
Print Mode	Production	360 x 720 DPI | 1 pass | Up to 108.6 m²/hour
	Production	720 x 720 DPI | 2 passes | Up to 60.1 m²/hour
	Production	720 x 720 DPI | 4 passes | Up to 29.9 m²/hour
	Production	720 x 1,440 DPI | 6 passes | Up to 20.7 m²/hour
	Production	720 x 1,440 DPI | 8 passes | Up to 15.6 m²/hour
Ink Type	Epson UltraChrome™ DS dye-sublimation ink
Colors	4 colors – Cyan, Magenta, Yellow, High Density Black
Ink Capacity	Cyan, Magenta, Yellow, High Density Black: 1100 ml ink pouch Fluorescent Yellow, Fluorescent Pink: 1,000 ml ink pouch
Paper Handling	Rear roll feed (2”/3” core with max 250 mm diameter and up to 45 kg); Auto take-up reel
Printable Area	Max printing width: 1615.6 mm; Side Margin: 5 mm both sides, 10 mm with media holding guides
Media Width	300.0 mm (11.8”) – 1625.6 mm (64”)
Media Thickness	Up to 1 mm
Control Panel	2.7” Color LCD
Printer Interfaces	Hi-Speed USB, 100BASE-TX /1000BASE-T
Printer Languages	Standard: ESC/P raster
Memory	512 MB main + 128 MB network
Software	Bundled in CD (Windows Only): CD installer, Epson communication Driver, Epson manual Launcher, Operators Guide, General Information, Epson Control Dashboard, EpsonNet Setup, EpsonNet Config, EpsonNet Print, Software Updater, DVD(Epson Edge Print bundle SKU only) Epson Edge Print, Epson Control Dashboard, Epson Communication Driver Web Delivery (Mac and Windows): Windows and Mac: CD installer, Epson communication Driver, Epson manual Launcher, Operators Guide, General Information, Epson Control Dashboard, EpsonNet Setup, EpsonNet Config, EpsonNet Print, Software Updater, LFP Accounting Tool
Power Requirements	AC 100-120 V AC 200-240 V 50/60 Hz
Power Consumption	Operating: Approx. 570W; Ready: Approx. 340 W; Sleep: Approx. 14 W; Power Off: Approx. 1.0 W
Recommended Operating Temperature & Humidity	Operating: 15 °C to 35 °C, Storage: -20 °C to 60 °C
Dimensions	2.62 m x 0.934 m x 1.332 m
Weight	290 kg (without ink)
Bundled Items	Substrate Support System and Ink Supply System (C12C934951), Initial Ink Pack Set 10 (C12C934741) x2
Warranty	1 year
